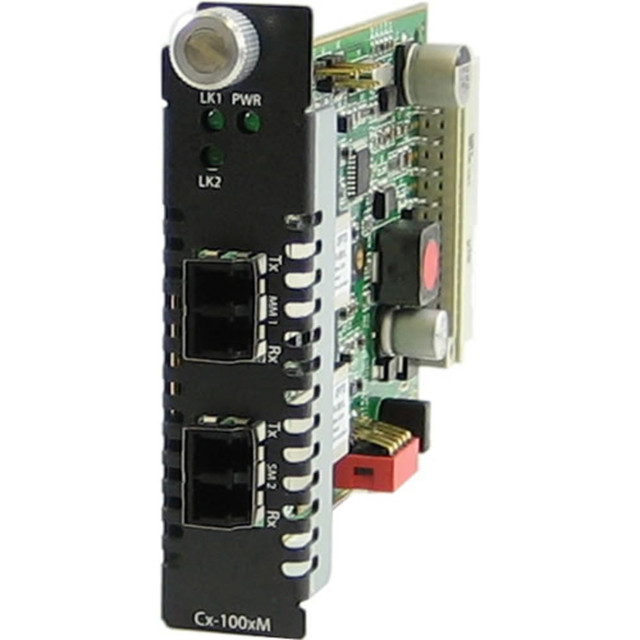

PERLE SYSTEMS Perle 05061050 C-100MM-S2LC20 - Media converter - 100Mb LAN - 100Base-FX, 100Base-LX - LC multi-mode / LC single-mode - up to 12.4 miles - 1310 nm

Far-End Fault (FEF). When enabled, the media converter transmits the far-end fault indication over the fiber connection whenever a receive failure is detected. The media converter continuously monitors the fiber connection and clears the far-end fault indication condition when a valid signal is received. Cascading. Media converters can be cascaded. Two or more media converters can be chained in a link to achieve even greater distances. Link pass-through. When enabled, the state of the receiver on one 100Base-X interface is reflected on the other 100Base-X fiber transmitter. Pause (IEEE 802.3xy). Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The media converter is transparent to Pause frames. Signal regeneration. Signal regeneration maintains signal integrity and allows for maximum fiber to fiber connections without degradation.
