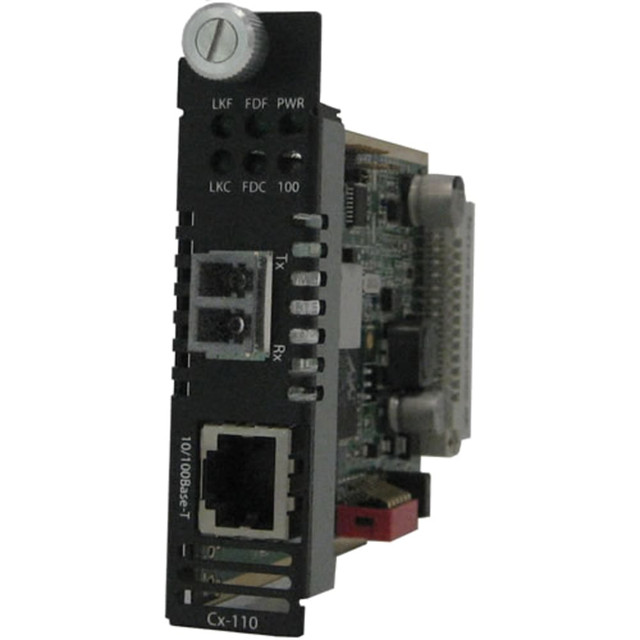

PERLE SYSTEMS Perle 05051570 C-110-S2LC80 - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-TX, 100Base-ZX - RJ-45 / LC single-mode - up to 49.7 miles - 1550 nm

Auto-MDIX. Auto-MDIX (automatic medium-dependant interface crossover) detects the signaling on the 10/100BASE-T interface to determine the type of cable connected and automatically configures the connection. Pause (IEEE 802.3xy). Integrated pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The Perle media converter module can generate and respond to pause messages. Status LED. The Perle 10/100 Ethernet Media Converter Modules have six single color status LEDs located on the face plate of the module. Error recovery. In certain configurations, and under specific conditions where the Media Converter Module brings down a link to convey status, there is potential for a deadlock. Recovery is achieved by momentarily restoring the link to see if the original failure has been resolved. If it has not, the link will be forced down again, however if the original problem has been resolved, the link will be restored.
