GLOBAL INDUSTRIAL 293147 High Velocity Fan, Wall and Column Mount, 18"

Previous Next

Global Industrial®

GLOBAL INDUSTRIAL 293147 High Velocity Fan, Wall and Column Mount, 18"

0 review Write a Review

Designed to project large amounts of air long distances, the High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines,…

SKU:	GBE 293147
UPC:	00707022511520
Condition:	New
Weight:	91.15 LBS
Shipping:	Calculated at Checkout
AC Voltage:	115 V
Air Flow (CFM):	7,700 CFM
Amps:	4.9 A/2.6 A
Blade Color:	Silver
Blade Material:	Galvanized Aluminum
Box Pack Quantity:	1 EA
Built-In Light:	No
CFM/Watts:	520 W
Carton Pack Quantity:	1 EA
Color(s):	Blue
Cord Length:	12 ft
Depth:	15.75"
Diameter:	18"
Fan Head Size:	18"
Fan Speed (RPM):	1,720 RPM
Fan Type:	Industrial
Fan Width:	18"
Global Product Type:	Industrial Wall Mount Fans
Guard Color:	Blue
Guard Material:	Powder Coated Steel
Height (Max):	27.2"
Horsepower:	1/2 hp
Housing Color:	Blue
Housing Finish:	Polyethylene
Housing Material:	Polyethylene
Light Kit Included:	No
MANUFACTURER PRODUCT LINE:	Global Industrial® High Velocity Fan, Wall and Column Mount
Material(s):	High Impact Polyethylene
Maximum Operating Speed (RPM):	1,720 RPM
Motor Phase:	Single
Motor Size:	1/8 hp
Motor Type:	Totally Enclosed Air Over (TEAO)
Noise Rating (dBA):	73.4 dBA
Number of Blades:	3
Number of Speeds:	1
Oscillates:	No
Post-Consumer Recycled Content Percent:	0%
Pre-Consumer Recycled Content Percent:	0%
Product Biodegradability Indicator:	N
Product Compostability Indicator:	N
Style:	Industrial
Switch:	Rotary Dial
Total Recycled Content Percent:	0%
Voltage:	115 V/208-240 V
Width:	25"

$897.01

Hurry up! Current stock:

Quantity:

Product Details

Product Details

Designed to project large amounts of air long distances, the High Velocity Drum Fan provides fresh air on loading docks, in warehouses, and down assembly lines, or to dry out after a flood and exhaust fumes. It has an efficient single-speed direct-drove TEAO (Totally Enclosed Air Over) motor with three galvanized aluminum fan blades. It comes with a yoke mount connected to a mounting assembly for installation on a wall or column. Fan Head Size: 18"; Fan Type: Industrial; Oscillates: No; Color(s): Blue.

Built with polyethylene housing that's corrosion- and impact-resistant.
Includes a steel wire fan guard and TEAO motor for OSHA-compliant safe use.
Equipped with three galvanized aluminum blades for long-term performance.

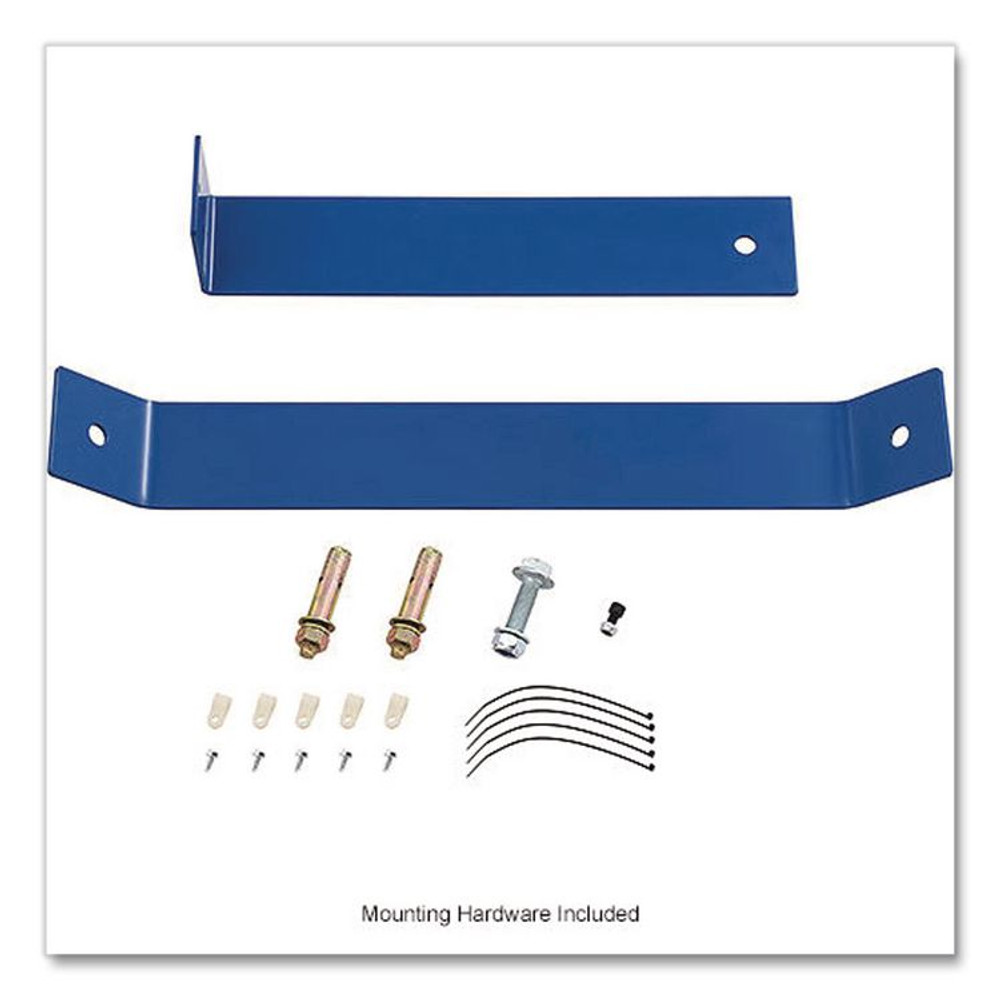

Yoke mount and hardware included for easy installation on walls or columns.
Includes a 12-ft, three-prong power cord to minimize the need for extension cords.
