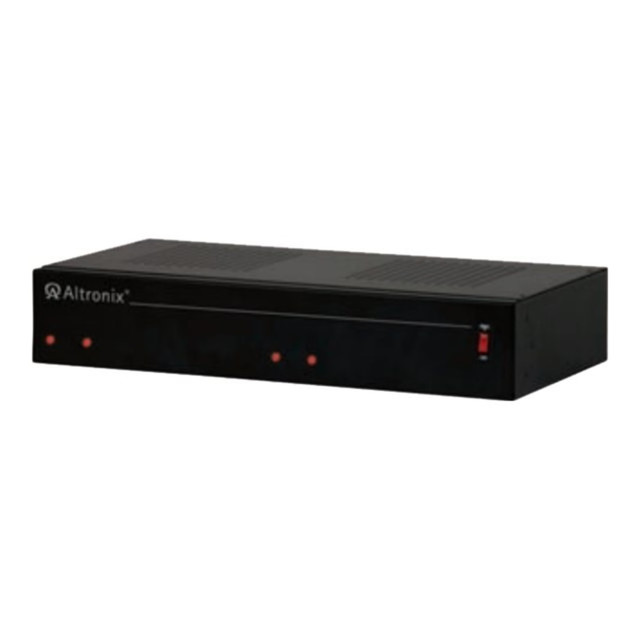

ALTRONIX CORPORATION Altronix MAXIMAL3RHD Maximal 3RHD - Power converter / control unit (rack-mountable) - AC 115 V - output connectors: 8

Maximal 3RHD rack mount access power controller distributes and switches power to access control systems and accessories. It converts an 115 V AC 50/60 Hz input into eight (8) independently controlled 12 V DC or 24 V DC PTC protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an access control system, card reader, keypad, push button, PIR, etc. This unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both fail-safe and/or fail-secure modes. Fire Alarm disconnect Instantaneous transfer to stand-by batteries. Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the outputs. Individually selectable Mag Lock/Strike (Fail-Safe, Fail-Secure) solid state PTC protected outputs. Thermal and short circuit protection with auto reset.- Supervision: AC Fail, Low Battery Built-in charger for sealed lead acid or gel type batteries. Eight (8) independently controlled PTC protected 12VDC and/or 24VDC outputs.
