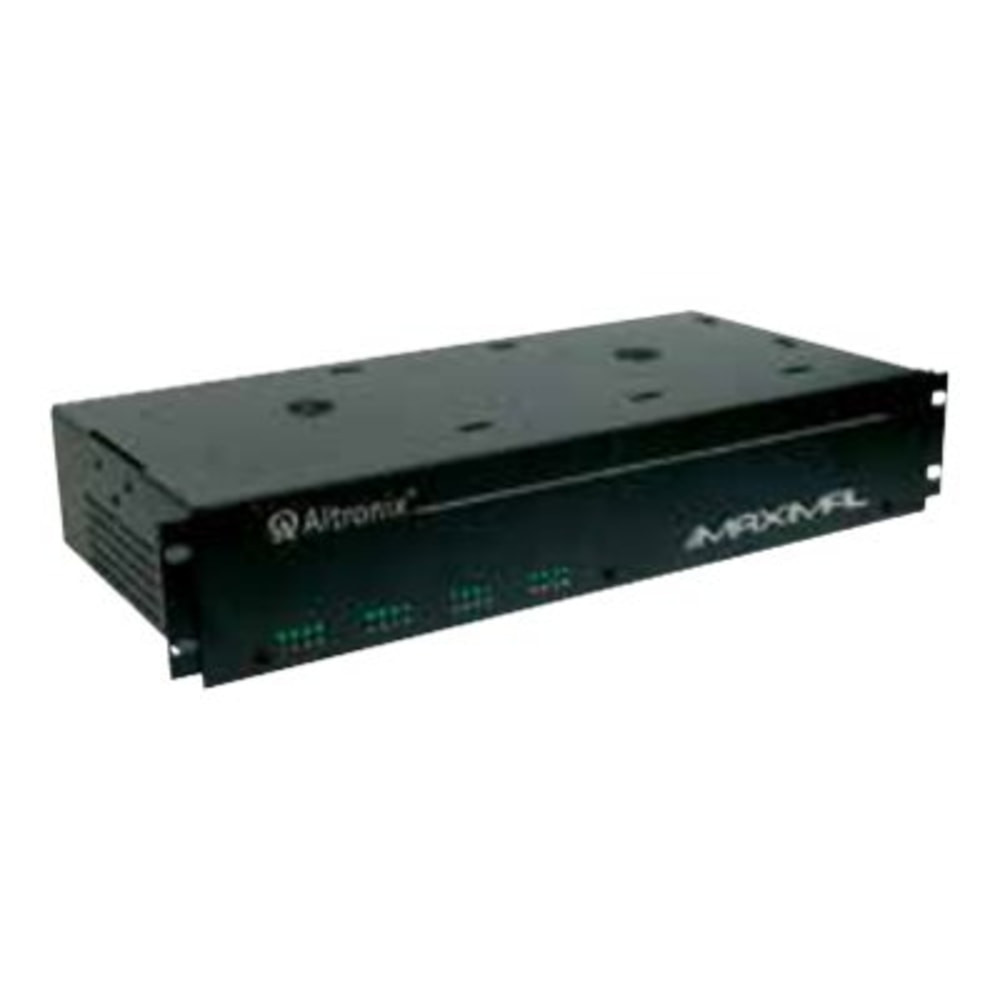

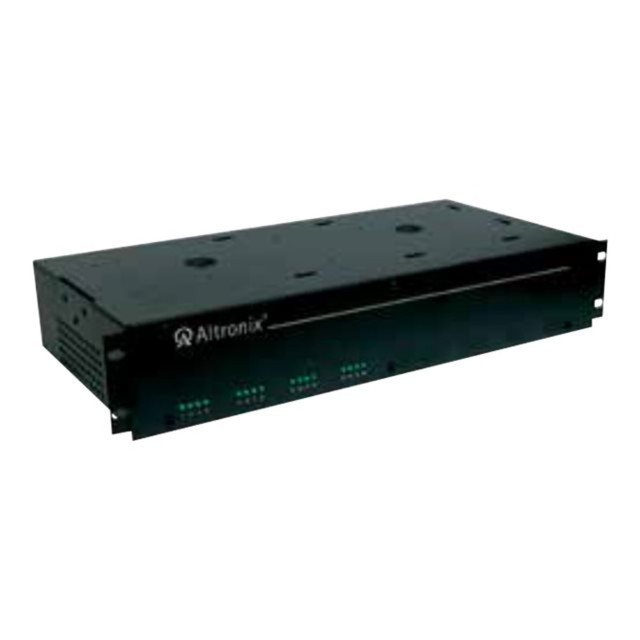

ALTRONIX CORPORATION Altronix MAXIMAL33R Maximal 33R - Power converter / control unit (rack-mountable) - AC 115 V - output connectors: 16

Maximal 33R rack mount access power controller distributes and switches power to access control systems and accessories. It converts an 115 V AC 50/60 Hz input into sixteen (16) independently controlled 12 V DC and/or 24 V DC fuse protected outputs. Outputs are activated by an normally open (NO) or normally closed (NC) dry trigger input from an access control system, card reader, keypad, push button, PIR, etc. This unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-safe and/or fail-secure modes. 16 fused outputs, each 8 out are selectable for 12/24VDC @ 6A, individually selectable for Fail-Safe or Fail-Secure operation or as dry form "C" contacts. Fire alarm disconnect selectable by out. 2U EIA 19in Rack Chassis. Rack Mount Access Power Cont with 2 power supplies.
